nRF9131-EK

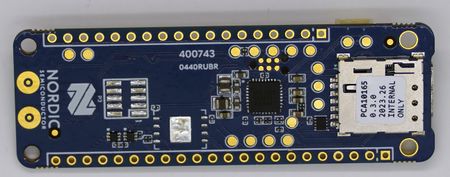

This article describes specifics for the Nordic Semiconductor nRF9131-EK evaluation board.

Minimum requirements

• J-Link software V7.92m or later

Preparing for J-Link

• Power the board USB Type-C Connector

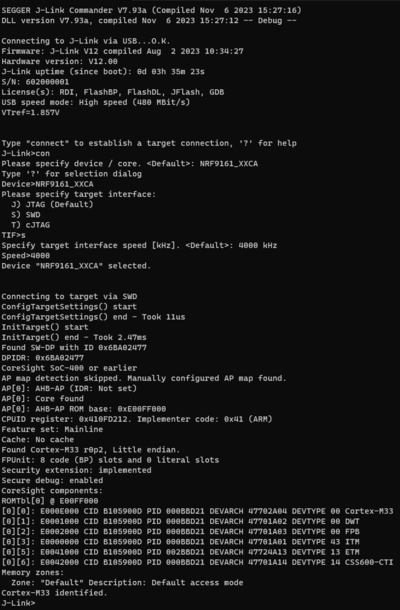

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nordic Semiconductor nRF9131-EK. It is a simple Hello World sample linked into the internal flash. The project contains a valid boot header so it also run stand-alone (without a debugger attached).

SETUP

• J-Link software: V7.92m
• Embedded Studio: V7.32
• Hardware: nRF9131-EK
• Link: File:NordicSemi nRF9131-EK TestProject ES V732.zip
