The TI TM4C123G LaunchPad evaluation board does not come with an external debug connector. Therefore, in order to use an external debug probe like the J-Link, at the first, the Tiva C Series TM4C123G LaunchPad board needs to be manually setup:

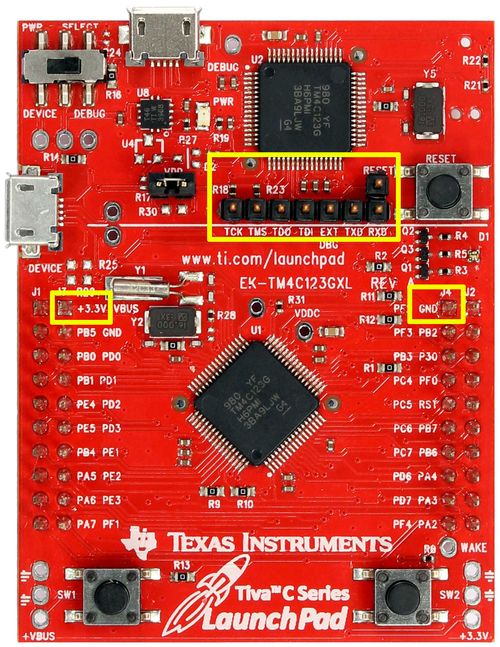

  • Solder a strip header to DBG (see image below)
  • Connect the debug interface signals manually (e.g. using jumping wires) as described in the table below
TM4C123G LaunchPad J-Link
TCK Pin 9 (SWCLK / TCK)
TMS Pin 7 (SWDIO / TMS)
TDO Pin 13 (SWO / TDO)
TDI Pin 5 (TDI)
RESET Pin 15 (nRST)
3.3V Pin 1 (VTref)
GND Pin 4 (GND)
