TI LP-EW-CC1314R10

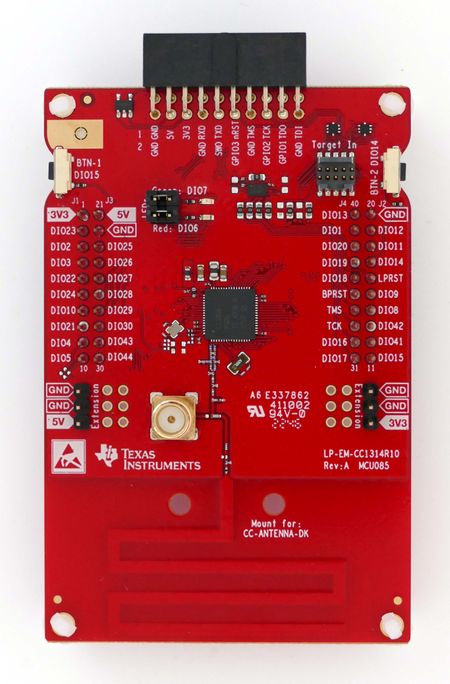

This article describes specifics for the TI Launchpad EW-CC1314R10 evaluation board.

Preparing for J-Link

• Connect the J-Link to Target In
• Power the board via J1.1(3,3V) J3.21(GND)

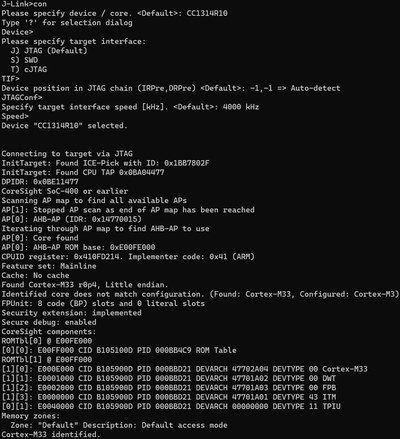

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the TI Launchpad EW-CC1314R10.
It is a simple Hello World sample linked into the internal flash.

SETUP

• J-Link software: V7.88g
• Embedded Studio: V6.34
• Hardware: TI Launchpad EW-CC1314R10
• Link: File:TI LP-EW CC1314R10 CC1314R10 TestProject ES V634.zip
