This article describes specifics for the TI Launchpad CC1311P3 evaluation board.

Preparing for J-Link

  • Connect the J-Link to Target In
  • Unpopulate the jumpers for used debug lines: RST/TMS/TCK/TDO/TDI/SWO
  • Power the board via USB

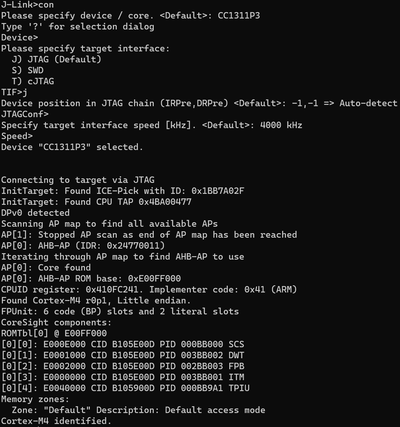

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the TI Launchpad CC1311P3.
It is a simple Hello World sample linked into the internal flash.

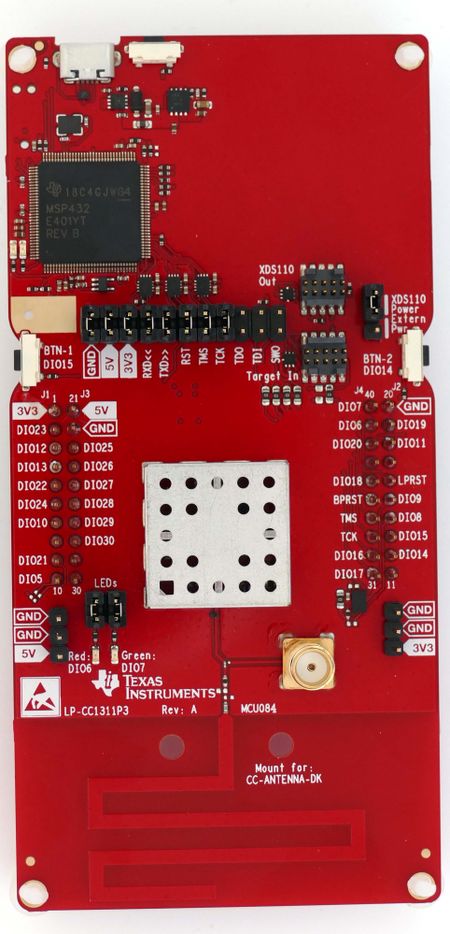

SETUP
