This article describes specifics for the Silicon Labs RS9116X-DB-EVK1 evaluation board. It can be used to test & verify Silicon Labs RS9116 support.
Minimum requirements
- J-Link software V6.95b or later
Preparing for J-Link
- Connect the J-Link to the JTAG/TRACE header (J7)
- Power the board via external USB power supply (J23)

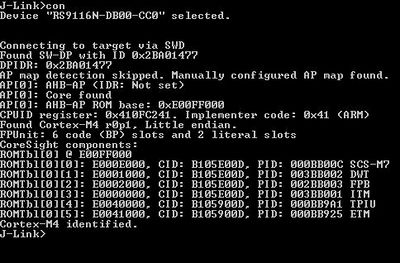

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
