ST NUCLEO-WBA52CG

This article describes specifics for the ST NUCLEO-WBA52CG evaluation board.

Preparing for J-Link

• Connect the J-Link to CN3-8(GND) CN3-9(SWDIO) CN3-11(SWDCLK) CN3-12(VTref) CN3-14(Reset).
• Set Jumper JP1 to 5-6 (5VINT)
• Power the board via CN3-22(GND) CN3-24(5V).

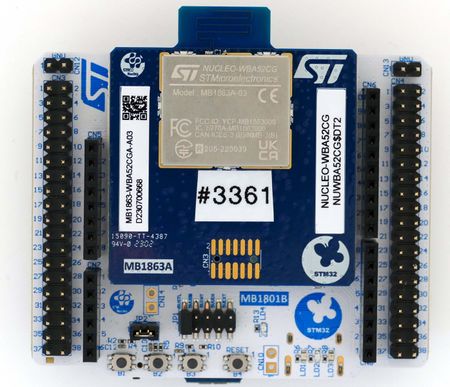

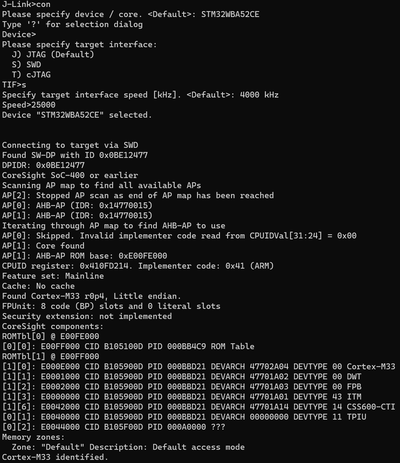

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST NUCLEO-WBA52CG.
It is a simple Hello World sample linked into the internal flash.

SETUP

• J-Link software: V7.88k
• Embedded Studio: V6.52b
• Hardware: ST NUCLEO-WBA52CG
• Link: File:ST NUCLEO-WBA52CG STM32WBA52CG TestProject ES V634.zip
