This article describes specifics for the ST NUCLEO-U545RE-Q evaluation board.

Preparing for J-Link

  • Connect the J-Link to CN4.
  • Power the board via CN3.

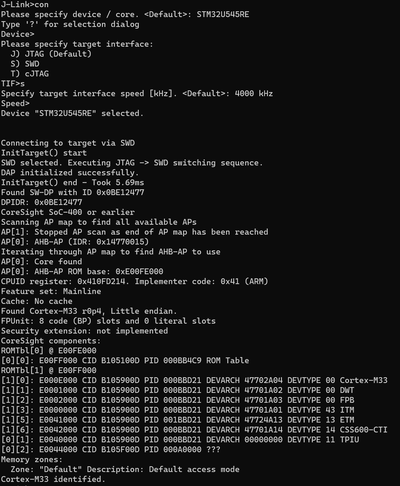

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST STM32U585.
It is a simple Hello World sample linked into the internal flash.

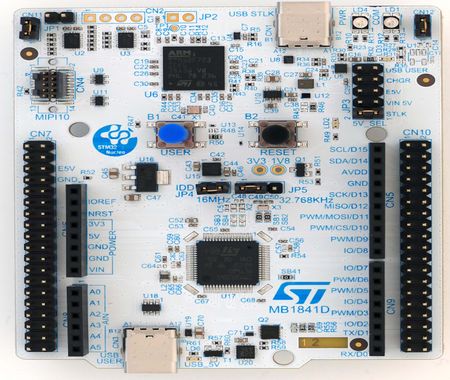

SETUP
