STM32MP257F-DK
Jump to navigation
Jump to search

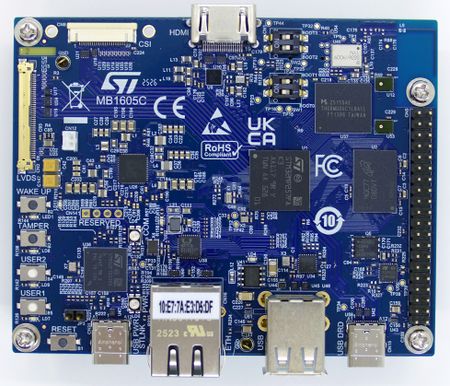

This article describes specifics for the ST STM32MP257F-DK evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | CN14 | 1 | 3V3_STLK |
| GND | CN14 | 3 | GND |
| TMS/SWDIO | TP40 | AE2 | |
| TCK/SWCLK | TP43 | AA5 |
- Select Development boot mode using SW1: BOOT0: 1, BOOT1: 1 and SW2: BOOT2: 0, BOOT3: 0.
- Power the board via CN21
- Verify the Connection with e.g. J-Link Commander. The output should look as follows:

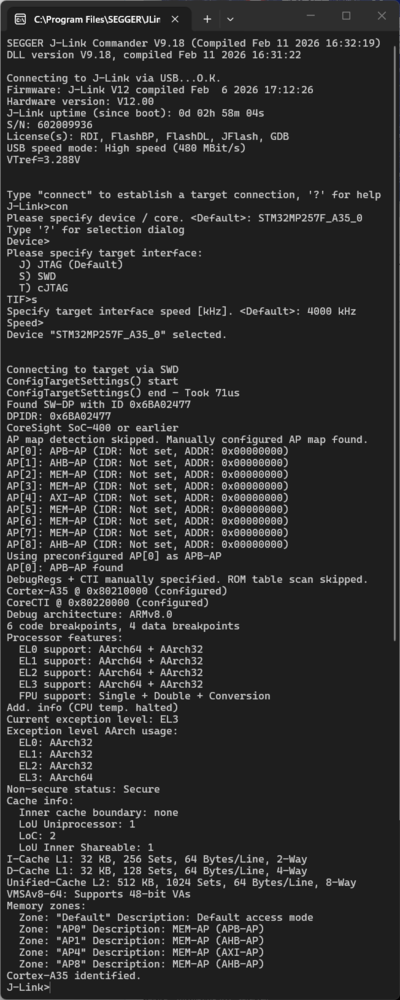

Cortex-A35

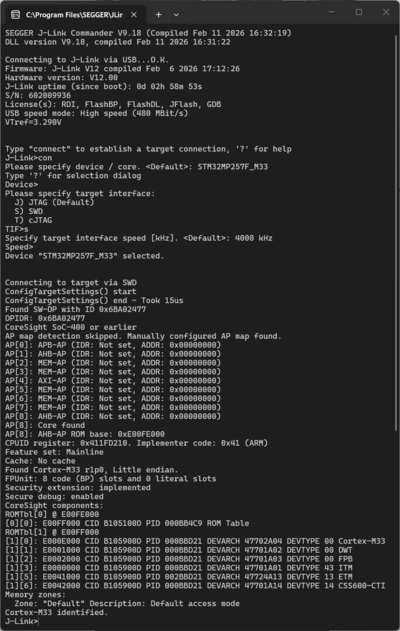

Cortex-M33

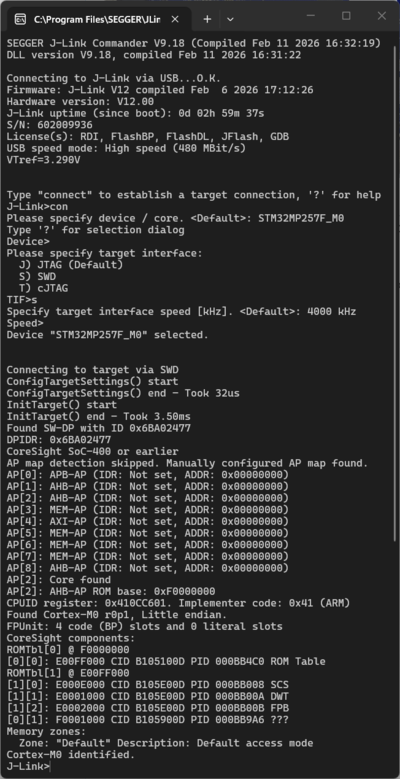

Cortex-M0
