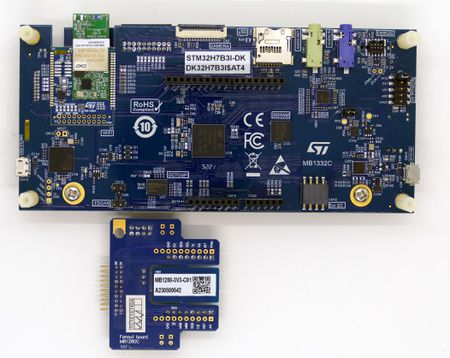

STM32H7B3I-DK

This article describes specifics for the ST STM32H7B3I-DK evaluation board.

Preparing for J-Link

• Connect the J-Link to CN8
• Power the board via CN14

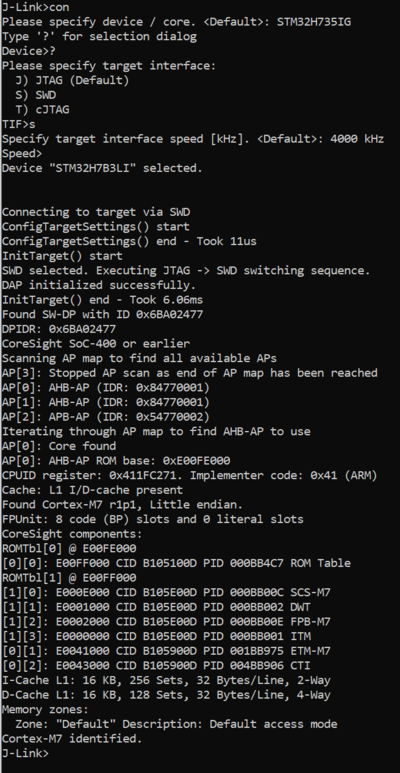

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST STM32H7B3I-DK.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.10b
• Hardware: ST STM32H7B3I-DK
• Link: File:ST STM32H7B3LI TestProject ES V810b.zip
