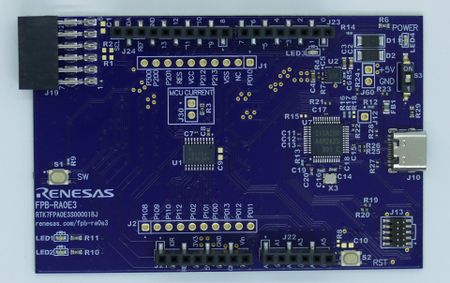

This article describes specifics for the Renesas FPB-RA0E3 evaluation board.

Preparing for J-Link

  • Set switch S3 to ON
  • Connect the J-Link to 10-pin Cortex debug connector (J13)
  • Power the board via USB-C connector (J10)

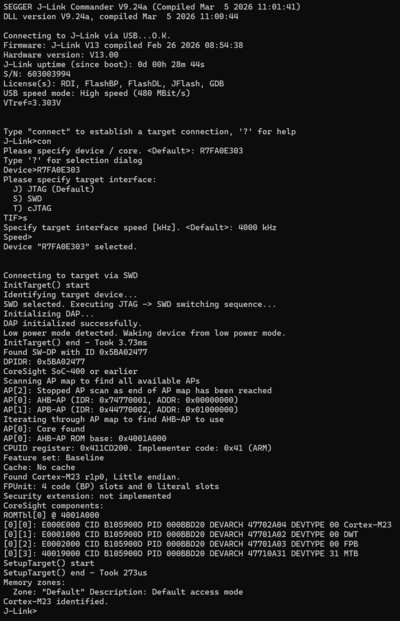

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:
