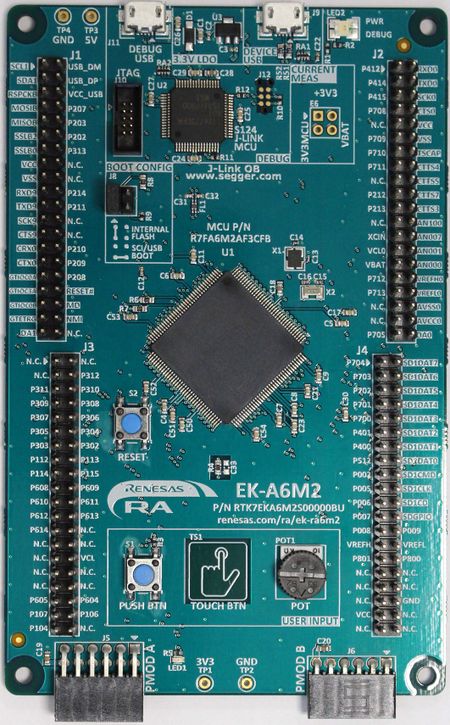

This article describes specifics for the Renesas EK-RA6M2 evaluation board.
Preparing for J-Link
- Connect the J-Link to the JTAG header (J10)
- Power the board via J11.

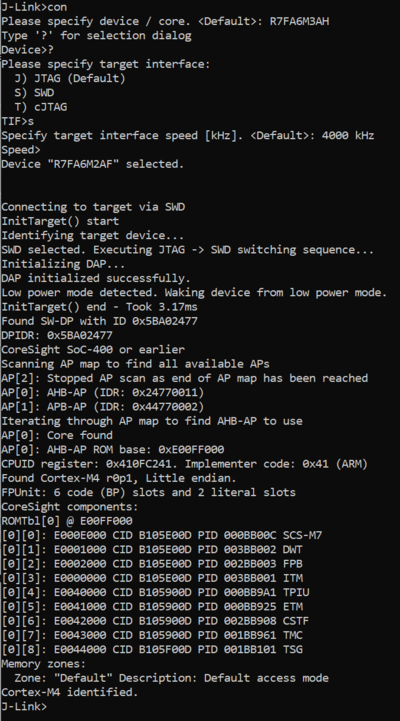

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Renesas EK-RA6M2.
It is a simple Hello World sample linked into the internal flash.
SETUP
- J-Link software: V8.10b
- Hardware: Renesas EK-RA6M2
- Link: File:Renesas R7FA6M2AF TestProject ES V810b.zip
