Renesas EK-RA4C1

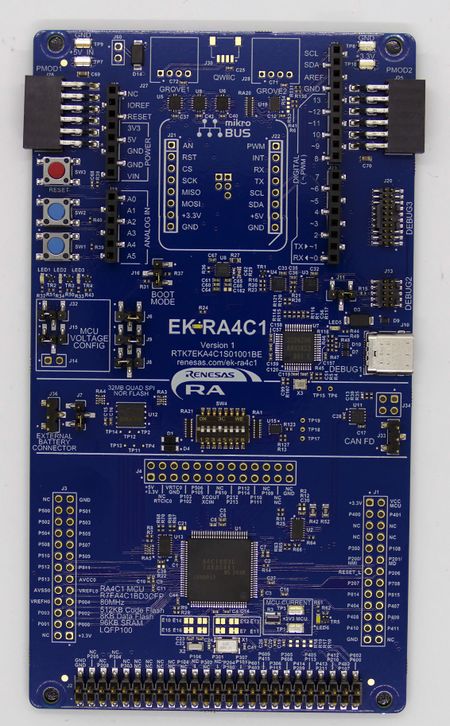

This article describes specifics for the Renesas EK-RA4C1 evaluation board.

Preparing for J-Link

• Connect the board to host computer J-Link to SWD/JTAG connector (CN401).
• Apply 3.3V to power connector (CM303).

Select R7FA4C1BD as target MCU.

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the EK-RA4C1.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.24
• Hardware: Renesas EK-RA4C1
• Link: File:Renesas EK-RA4C1 TestProject ES V824.zip
