This article describes specifics for the Renesas EK-RA2A2 evaluation board.

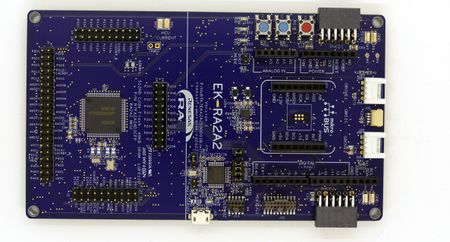

Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | J2 | 1 | VCC |
| GND | J2 | 20 | VSS |
| TMS/SWDIO | J2 | 18 | P108/SWDIO |
| TCK/SWCLK | J2 | 17 | P300/SWCLK |
- Power the board via J10.

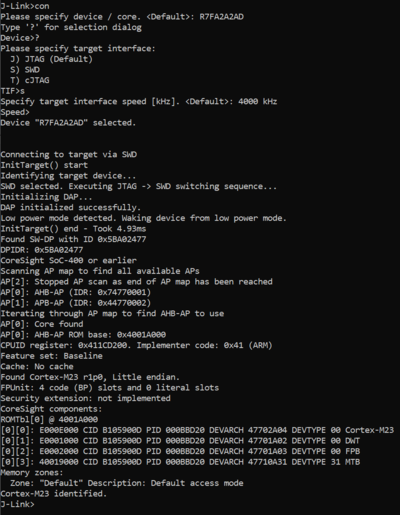

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
