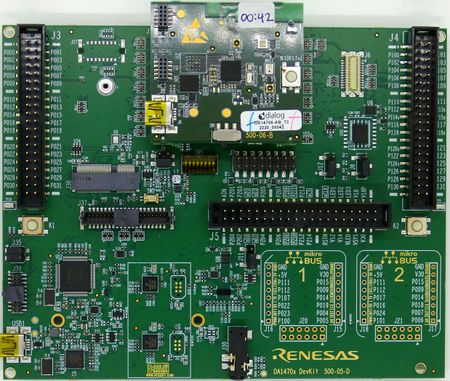

This article describes specifics for the Renesas DA1470x DevKit evaluation board.

Preparing for J-Link

  • Connect the J-Link to the 19-pin debug connector (J31).
  • Power the board via USB (J8).

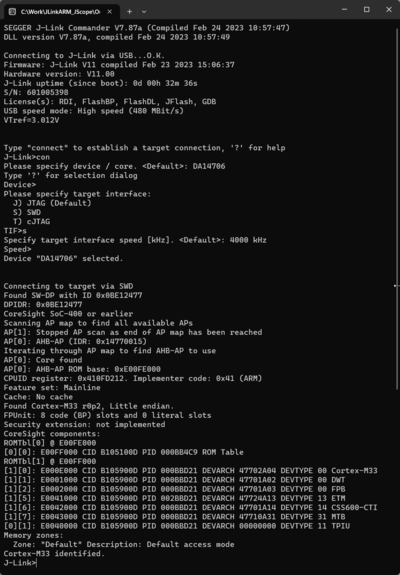

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:
