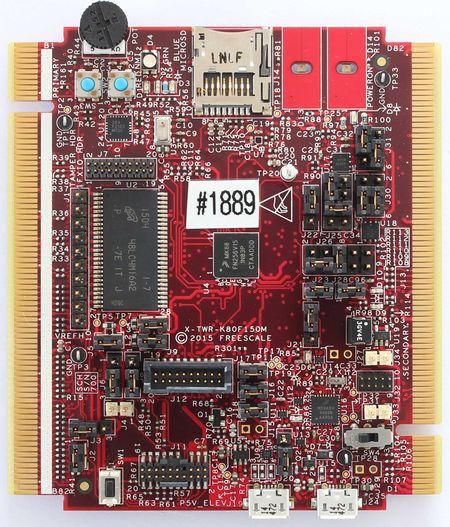

This article describes specifics for the NXP TWR-K80F150M evaluation board.

Preparing for J-Link

  • Connect the J-Link to the SWD header (J11) on the board.
  • Power the board via USB (J19)

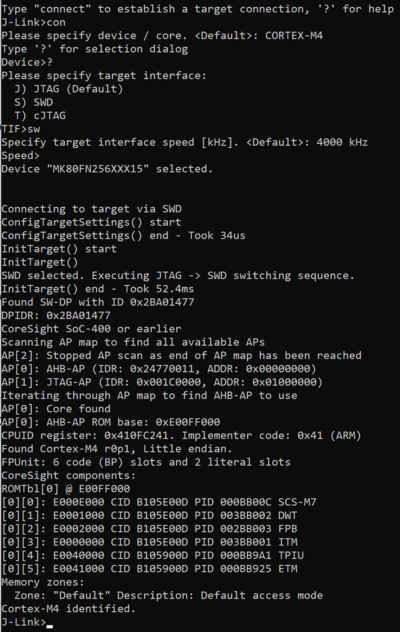

  • Verify the Connection with J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP TWR-K80F150M.
It is a simple Hello World sample linked into the internal flash.

SETUP
