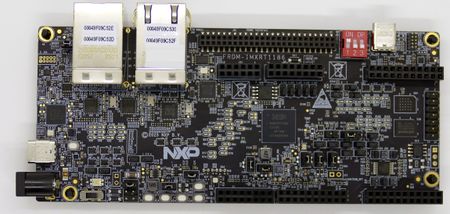

This article describes specifics for the NXP FRDM-IMXRT1186 evaluation board.

Preparing for J-Link

  • Connect the J-Link to J62 with a 9-Pin Cortex-M Adapter
  • Short pins on J58
  • Power the board via 5V barrel (J6)
  • Move SW5 into position 1-2/4-5

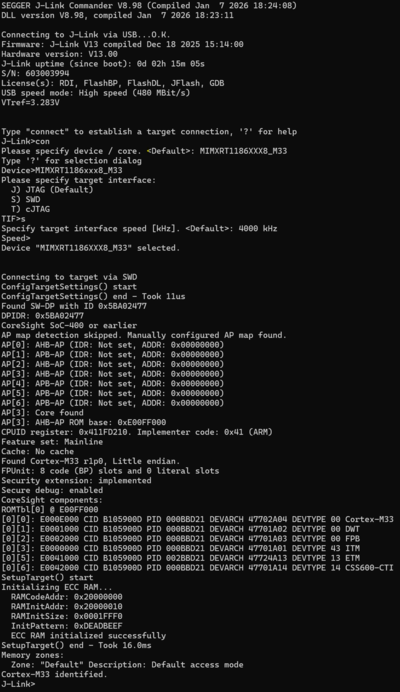

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:
