Mindmotion-NANO-F0270

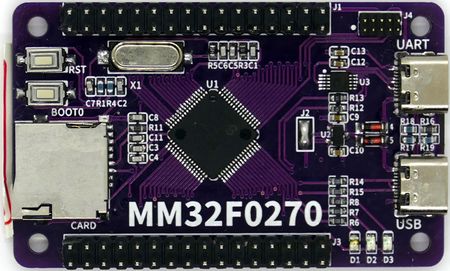

This article describes specifics for the Mindmotion NANO-F0270 evaluation board.

Minimum requirements

• J-Link software V7.82e or later

Preparing for J-Link

• Connect the J-Link to J4 (Pin 1 is not at the DOT on the PCB, rotate cable 180°)
• Power the board via USB (UART or USB port)

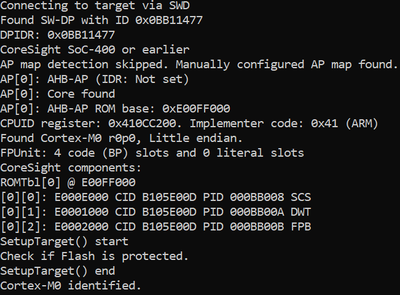

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Mindmotion NANO-F0270 MM32F0273D7P.
It is a simple Hello World sample linked into the internal flash.

SETUP

• J-Link software: V7.82e
• Embedded Studio: V6.34
• Hardware: Mindmotion NANO-F0270
• Link: File:MM32 NANAO-0270 MM32F0273D7P TestProject ES V634.zip
