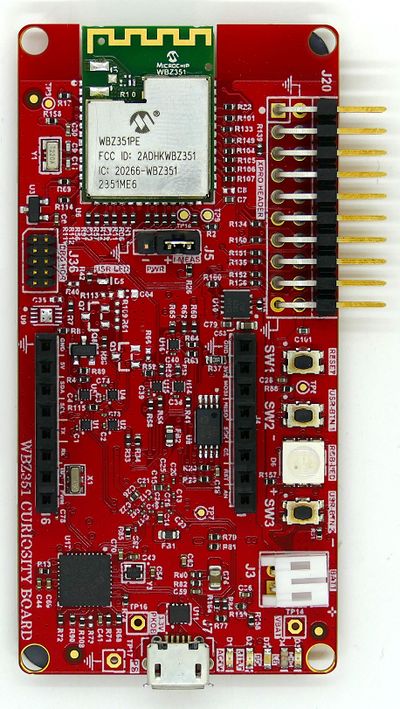

Microchip WBZ351 Curiosity evaluation board

This article describes specifics for the Microchip WBZ351 Curiosity evaluation board. It can be used to test & verify Microchip PIC32CX-BZ3 device support.

Preparing for J-Link

  • Connect the J-Link to the SWD header (J36).
  • Power the board via the USB jack of the break out board (J7).

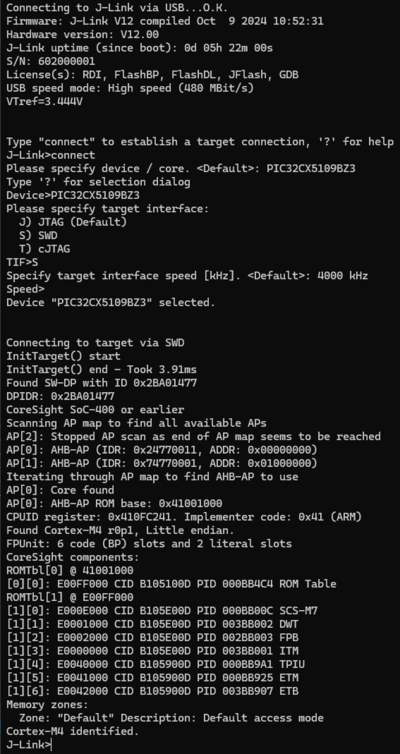

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Microchip WBZ351 Curiosity. It is a simple Hello World sample linked into the internal flash.

SETUP
