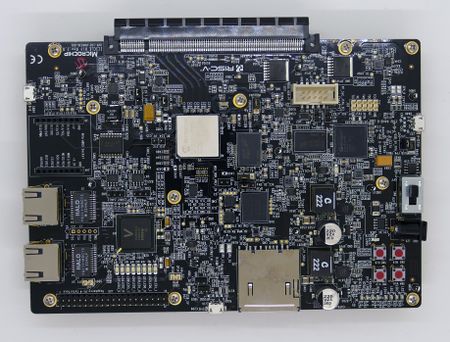

This article describes specifics for the Microchip PolarFire Icicle Kit evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | J23 | 6 | VJTAG |
| GND | J23 | 2 | GND |
| nTRST | J23 | 8 | TRSTB |
| TDI | J23 | 9 | TDI |
| TMS/SWDIO | J23 | 5 | TMS |
| TCK/SWCLK | J23 | 1 | TCK |
| TDO/SWO | J23 | 3 | TDO |
- Power the board via J29 power connector.

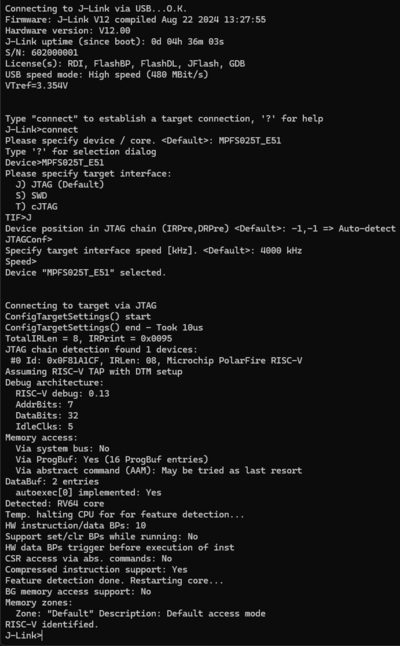

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Microchip PolarFire Icicle Kit.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.16a
- Hardware: Microchip PolarFire Icicle Kit
