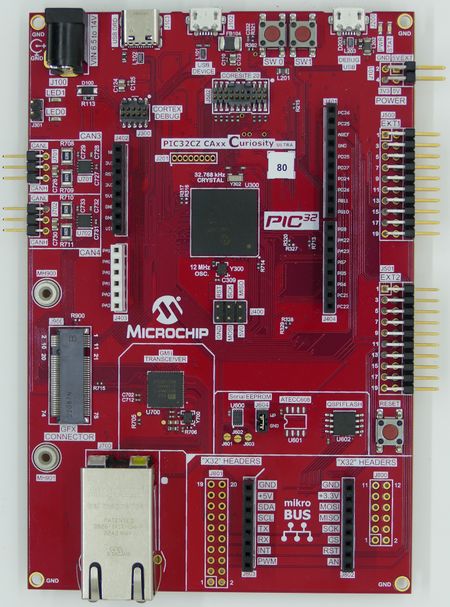

This article describes specifics for the Microchip Curiosity Ultra PIC32CZCA80 evaluation board. It can be used to test & verify PIC32CZCA80 device support.

Minimum requirements

  • J-Link software V7.94a or later

Preparing for J-Link

  • Connect the J-Link to CORTEX DEBUG connector (J300).
  • Power the board via Power jack connector (J100).

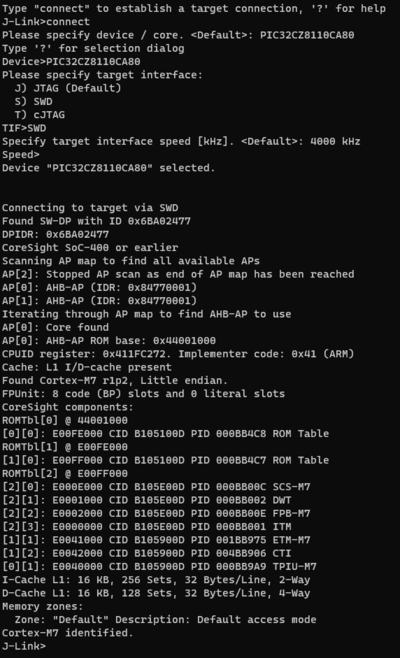

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Microchip Curiosity Ultra PIC32CZCA80.
It is a simple Hello World sample linked into the internal flash.

SETUP
