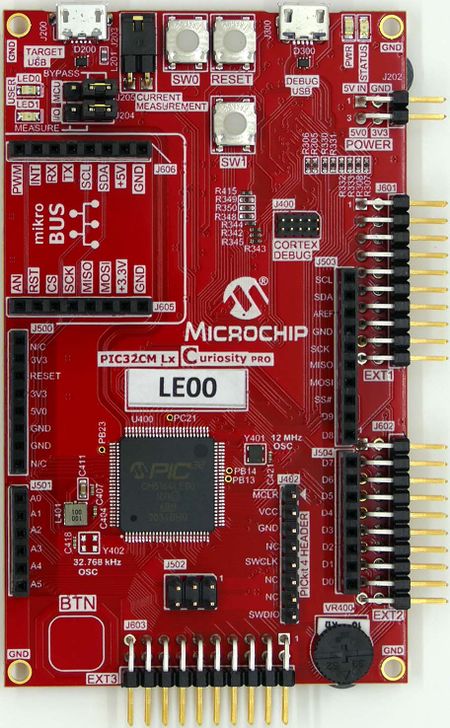

This article describes specifics for the Microchip Curiosity Pro PIC32CMLE00 evaluation board.

Preparing for J-Link

  • Connect the J-Link to J400.
  • Power the board via J200.

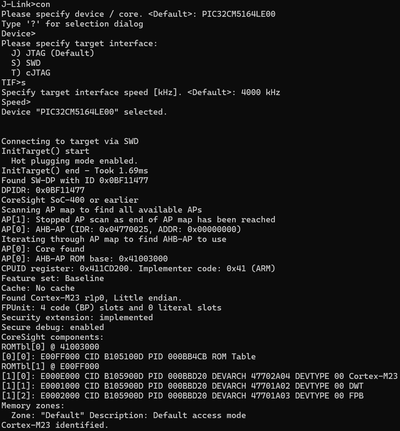

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Microchip Curiosity Pro PIC32CMLS00.
It is a simple Hello World sample linked into the internal flash.

SETUP
