KIT FX5 FMC 001
Jump to navigation
Jump to search

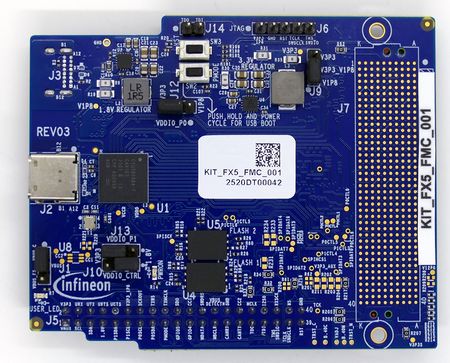

The KIT FX5 FMC 001 is an Infineon CYUSB3084 evaluation board.
Preparing for J-Link
- Connect the J-Link to J6 on the evaluation board, using jumper wires as follows:
| J6 Pin | J-Link Pin |
|---|---|
| V3P3 | 1 (VTref) |
| GND | 4 (GND) |
| TCLK / SWCLK | 9 (SWCLK) |
| TMS / SWDIO | 7 (SWDIO) |
- Power on the board via the USB connector J2

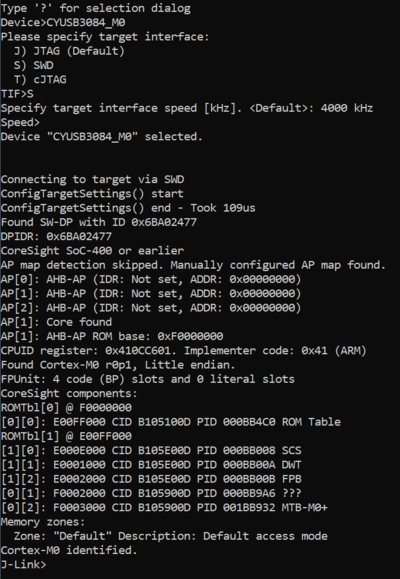

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
