Infineon CY-SD2220

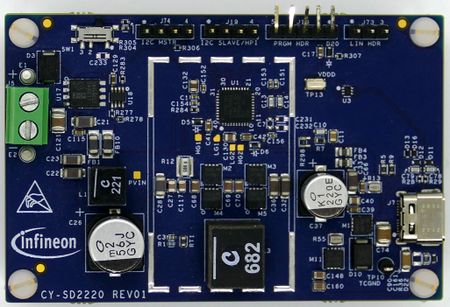

This article describes specifics for the Infineon CY-SD2220 evaluation board.

Preparing for J-Link

• Connect the J-Link to J18:
  • GND on J18.2
  • SWDIO on J18.5
  • SWCLK on J18.4
  • Reset on J18.3
  • VTref on TP13
• Power the board via J5.

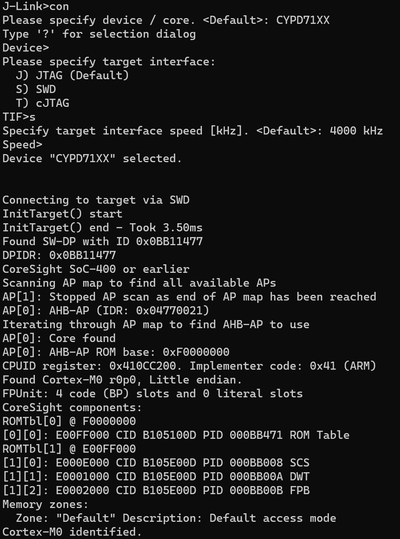

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Infineon CY-SD2220.
It is a simple Hello World sample linked into the internal flash.

SETUP

• J-Link software: V7.94k
• Embedded Studio: V7.20
• Hardware: Infineon CY-SD2220
• Link: File:Infineon CY-SD2220 Rev01 CYPD7191-40LDXS TestProject ES 7V20.zip
