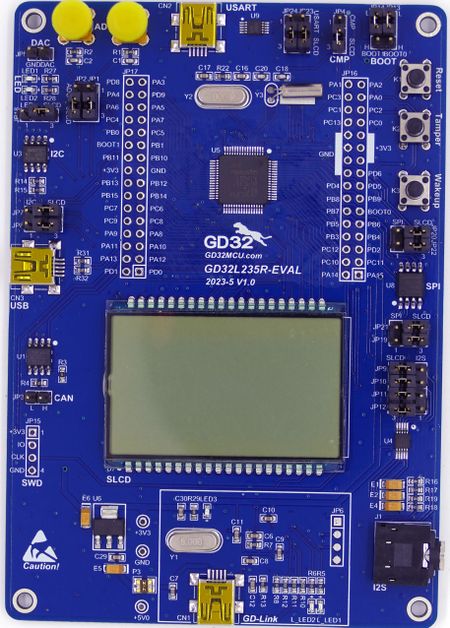

This article describes specifics for the GigaDevice GD32L235R-EVAL evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | JP15 | 1 | +3V3 |
| GND | JP15 | 4 | GND |
| TMS/SWDIO | JP15 | 2 | IO |
| TCK/SWCLK | JP15 | 3 | CLK |
- Power the board via CN1.

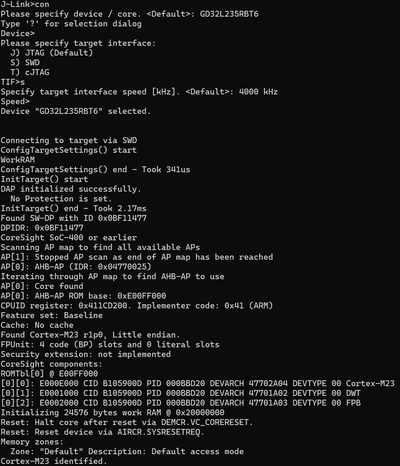

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the GigaDevice GD32L235R-EVAL.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: GigaDevice GD32L235R-EVAL
- Link: File:GigaDevice GD32L235R. TestProject ES 7V20.zip
