GigaDevice GD32F303B-START
Jump to navigation
Jump to search

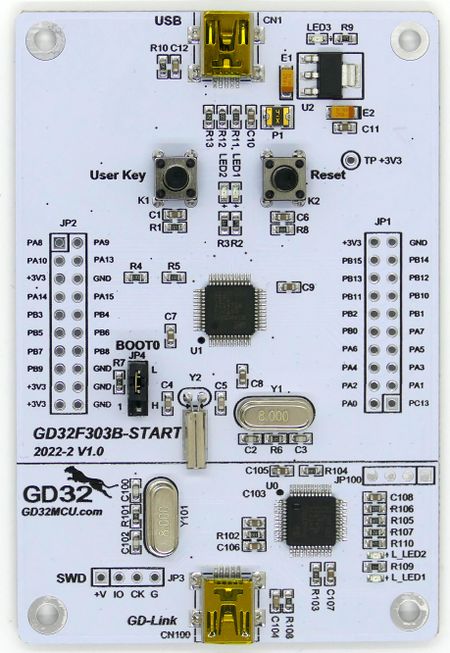

This article describes specifics for the GigaDevice GD32F303B-START evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | JP3 | 1 | +V |
| GND | JP3 | 4 | G |
| TMS/SWDIO | JP3 | 2 | IO |
| TCK/SWCLK | JP3 | 3 | CK |
- Power the board via CN100.

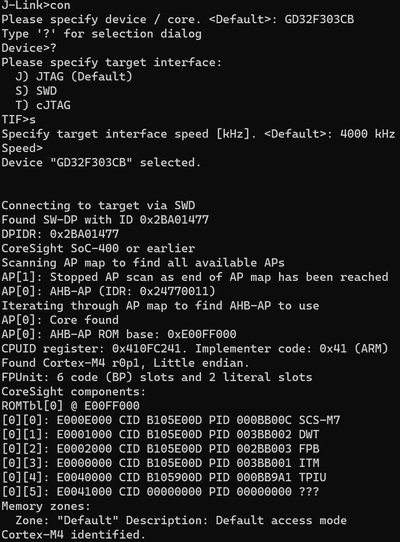

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the GigaDevice GD32F303B-START.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: GigaDevice GD32F303B-START
- Link: File:GigaDevice GD32F303B-START GD32F303CB TestProject ES 7V20.zip
