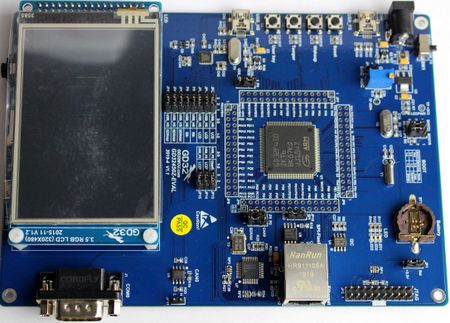

This article describes specifics for the GigaDevice GD32450Z-EVAL evaluation board.
Preparing for J-Link
- Connect the J-Link to the JTAG header (JP2)
- Power the board via CN3.

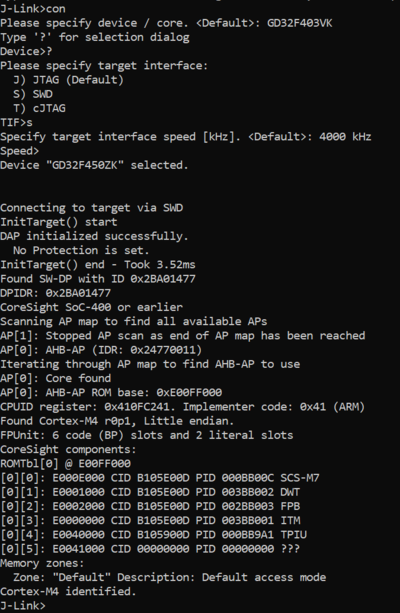

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the GigaDevice GD32450Z-EVAL.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.10b
- Hardware: GigaDevice GD32105R-START
- Link: File:GigaDevice GD32F450ZK TestProject ES V810b.zip
