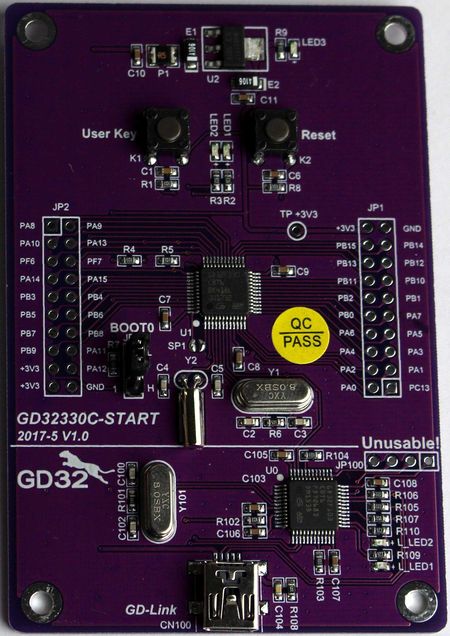

This article describes specifics for the GigaDevice GD32330C-START evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | JP2 | 19 | +3V3 |
| GND | JP2 | 20 | GND |
| TMS/SWDIO | JP2 | 4 | PA13 |
| TCK/SWCLK | JP3 | 7 | PA14 |
- Power the board via CN100.

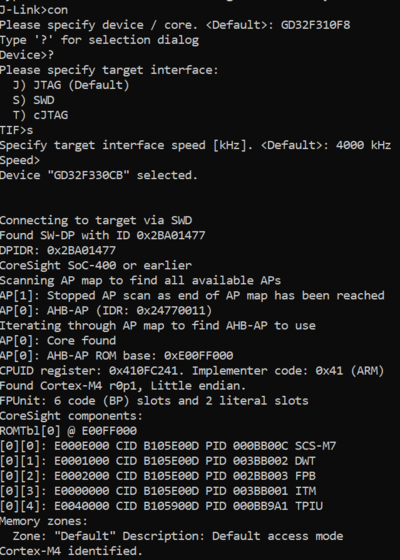

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the GigaDevice GD32330C-START.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.12a
- Hardware: GigaDevice GD32F303B-START
- Link: File:GigaDevice GD32330CB TestProject ES V712a.zip
