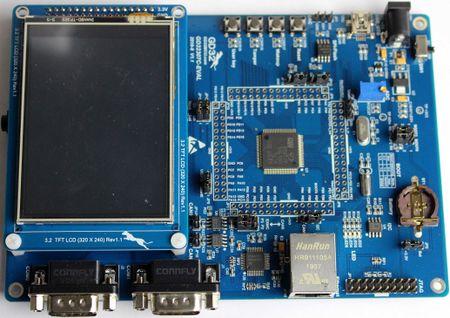

This article describes specifics for the GigaDevice GD32307C-EVAL evaluation board.
Preparing for J-Link
- Connect the J-Link to the JTAG header (JP1)
- Power the board via CN2.

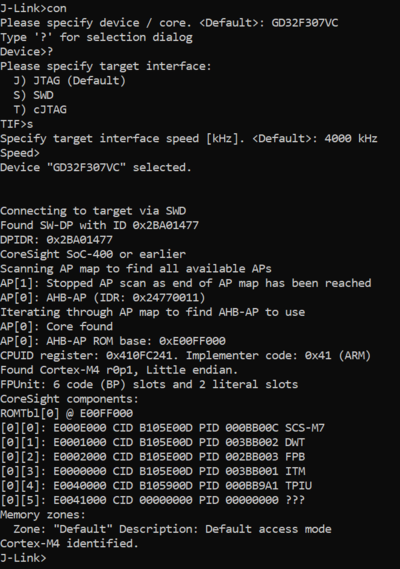

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the GigaDevice GD32307C-EVAL.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.12a
- Hardware: GigaDevice GD32307C-EVAL
- Link: File:GigaDevice GD32307VC TestProject ES V712a.zip
