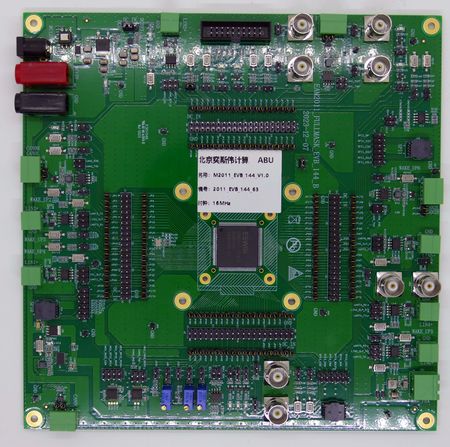

This article describes specifics for the ESWIN EAM2011_FULLMASK_EVB evaluation board.

Preparing for J-Link

  • Connect the J-Link to 20-pin JTAG connector (J44).
  • Power the board via the DC 12V power jack (J60).

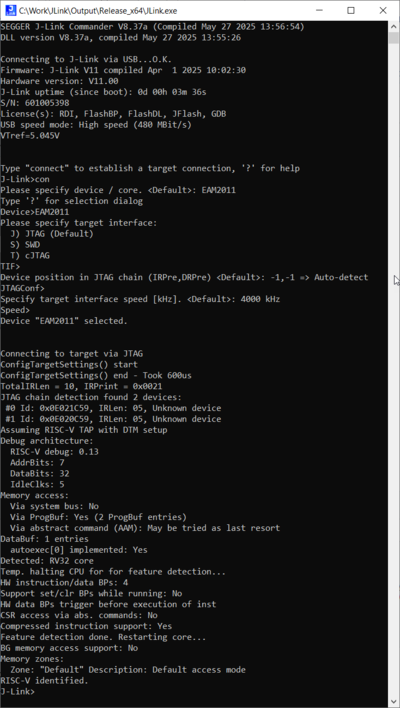

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ESWIN EAM2011_FULLMASK_EVB.
It is a simple Hello World sample linked into the internal flash.

SETUP
