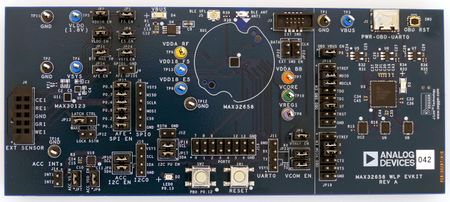

Analog MAX32658 WLP EVKIT

This article describes specifics for the MAX32658 WLP EVKIT evaluation board.

Preparing for J-Link

• Connect the J-Link to J3.
• Set the following jumpers: JP22, JP23.
• Remove the following jumpers from JP18:
  • SWDIO
  • SWDCLK
  • TDO
  • TDI
  • RST
  • TRST
• Power the board via J1.

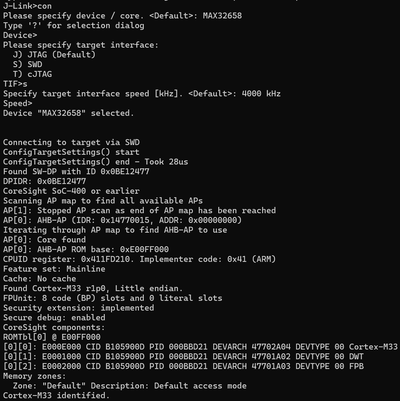

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the MAX32658 WLP EVKIT.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V7.20
• Hardware: MAX32658 WLP EVKIT
• Link: File:Analog MAX32658 TestProject ES 7V20.zip
