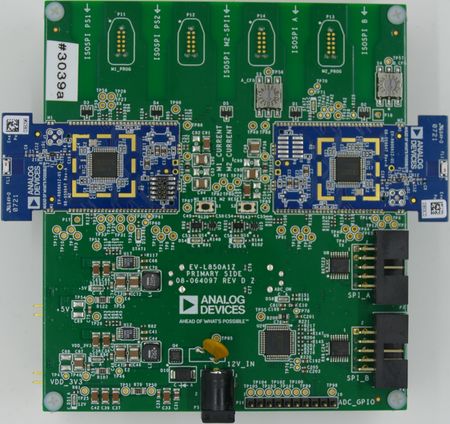

This article describes specifics for the Analog Devices EV-L850A1Z evaluation board.

Minimum requirements

  • J-Link software V7.61c or later

Preparing for J-Link

  • Connect the J-Link debug connector.
  • Power the board via 12V power supply

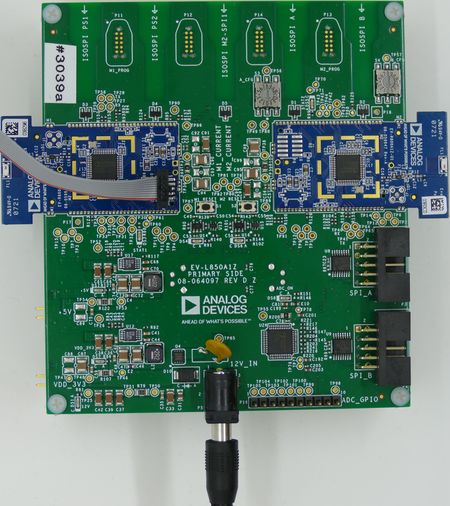

  • The board should look like this:

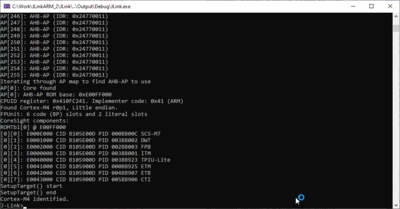

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Analog Devices EV-L850A1Z. It is a simple Hello World sample linked into the internal flash.

SETUP
