AT91SAM9XE-EK

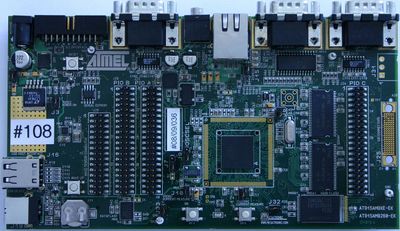

The Atmel AT91SAM9XE-EK is an AT91SAM9XE evaluation board.

Preparing for J-Link

• Connect your J-Link to the "ICE INTERFACE" (J5)
• Close "FORCE POWER ON" (J3)
• Power the board via "V5 ONLY" (J1)

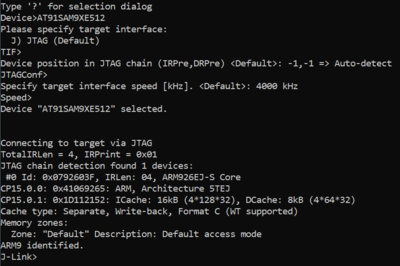

• Verify the Connection with J-Link Commander. The output should look as follows:

Note:
Make sure J7 is removed or set to 2-3 before powering up. Closing 1-2 will start the device in erase mode which will erase all flash memory on powerup.

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ATSAM4LC4CA. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.75
• Embedded Studio: V8.16
• Hardware: Atmel ATSAM4LC4CA
• Link: File:AT91SAM9XE HelloWorld.zip
