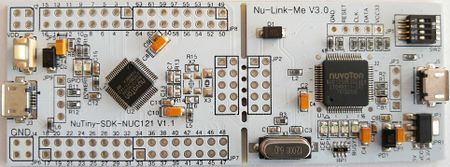

This article describes specifics for the Nuvoton NuTiny-EVB-NUC121 evaluation board.

Preparing for J-Link

  • Connect the J-Link to the SWD header (JP2) on the board. VTref=JP2-2 / SWDIO=JP2-4 / SWCLK=JP2-6 / SWO=JP2-8 / GND=JP2-10
  • Power the board via USB (J5)

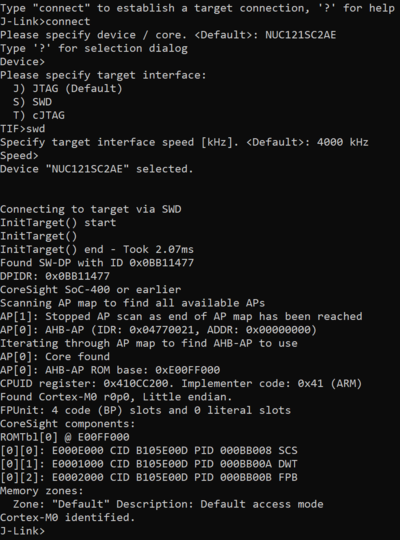

  • Verify the Connection with J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nuvoton NuTiny-EVB-NUC121.
It is a simple Hello World sample linked into the internal flash.

SETUP
