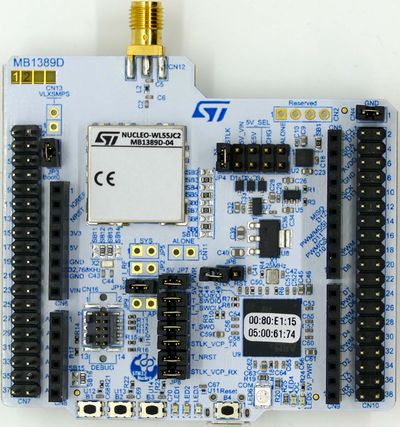

Tthe ST NUCLEO-WL55JC2 is a ST STM32WL5x evaluation board.

Preparing for J-Link

  • Connect your J-Link to the JTAG header (CN4)
  • Disable the STLink using JP6
  • Select 5V_USB_CHGR at JP4
  • Power the board via USB (CN1)

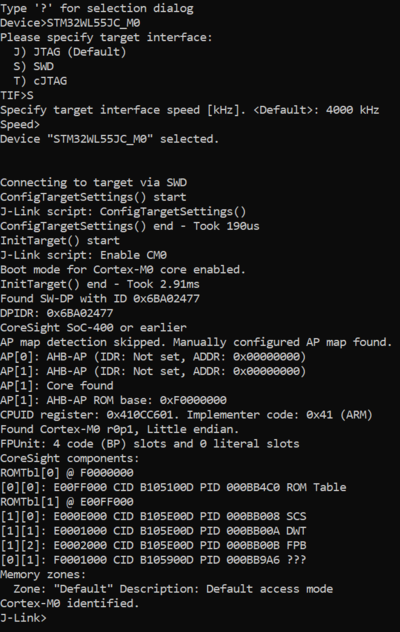

  • Verify the Connection with J-Link Commander. The output should look as follows:

Example Application
